Automatic Plastic Extruder Machine for Thermoforming PP PS ABS HIPS Production Line

Name: Automatic Plastic Extruder Machine for Thermoforming PP PS ABS HIPS Production Line
Brand: Changyue
Price: 1 USD

Wholesale Automatic Plastic Extruder Machine for Thermoforming PP PS ABS HIPS Production Line from china suppliers

Model NO. : SJ 90

Board Layers : Multilayer

Screw No. : Single-screw

Automation : Automatic

Computerized : Computerized

Certification : CE

Customized : Customized

Condition : New

After-Sales Service Provided : Engineers Available to Service Abroad

Sheet Width : 700 - 3000 mm

Extruder Size : 90 / 33

Loading Port : Qingdao Port

Installation Power : 150 Kw

Sheet Thickness : 0.2-2 mm

Transport Package : Film

Specification : 35*3.5*3.5m

Trademark : Changyue

Origin : Shandong, China

HS Code : 84772090

Supply Ability : 200 -300 Kg/H

Package Size : 3500.00cm * 250.00cm * 350.00cm

Package Gross Weight : 15000.000kg

After-sales Service : Site Installation

Warranty : One Year

Product Type : PP PS PE ABS HIPS Sheet

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

: Initial Payment Full Payment

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Place of Origin : Shandong, China

Brand Name : Changyue

Packaging Details : Export Film Packing / According To Customer

Delivery Time : 15 Days (1 - 1 Pieces) To Be Negotiated ( > 1 Pieces)

Contact Now

plastic sheet extruder machine / PP PS Theromofroming roll sheet Extrusion Machine

video: https://youtu.be/8Q4qR0ux_FQ

Product description
Raw Material:
1. can be virgin plastic material. PP, PE PS, ABS, HIPS, PLA
2. can be recyclable material, like PP, PS granules FLAKES

SHEET SPECIFICATION:
Usual Sheet Width: 600-800-1000-1500 mm
Usual Sheet Thickness: 0.2-2.2 mm

APPLICATION:
1. This line is specially used for producing PP, PE PS, ABS, HIPS, PLA sheet.
2. Surface Treatment: Adding some additives can improve intensity/toughness/rigidity, flame retardant, embossing, frosting, etc.
3. Application: Packing, printing, stationery, art works etc.
4. Main Products: Gift/ad/file bag/lamp cover/food packaging

MAIN FEATURES:
1. Screw with special mixing and plasticization function.
2. Coat hanger T-type die head with two throttle design enable to regulate the sheet thickness accurately.
3. Horizontal. vertical, 45 degree incline type 3 Roller Calendars may be lifted freely, sheet thickness shall be regualted by screw and pressing roller.
4. Separate roller temperature control system to control the temperature of pressing roller to gain even sheet thickness.
5. Exact slicing machine, excellent cross surface.
6. Winder with big torque motor, and it's speed and tension force adjustable.
7. Automatic metering to set the length of the products.

Technical data

Summary
Suitable resin	PP/PE/PS /ABS / HIPS
Sheet width	400-2000mm(customized)
Sheet thickness	0.2-5mm(as requirement)
Capacity	150-1000kg/h
Power supply	380v 3phase 50HZ

Automatic Plastic Extruder Machine for Thermoforming PP PS ABS HIPS Production Line

1. drier & mixer volum: 1000 kg / 1500 kg

2. material: SS

. vacuum auto loader

2. single screw extruder

3. one extruder or two extruder for single / multilayer sheet

4. exhausted screw

5. sheet width: 600-300 mm

6. sheet thickness: 0.5-5 mm

7. main motor: Siemens Beide

8. melting pump if needed

9. gear box brand: Jiangyin

1. . hydraulic mesh changer / filter & hydraulic station

2. T die: brand: JC times T die

3. meting pump to control production steady

1. vertical three roller calender / 45degreee calender accodring to the
sheet spefication

2. roller diameter: 400 / 450 / 500 mm

3. flange type rotating jointor

4. roller temperature controlling unit

5. roller mirror treatment

6. Surface hardness: HRC55-58

7.Surface roughness: Ra<=0.025um

8. up & down movement by motor

9. the rollers can do embossment

1. cooling bracket length: 12 m

2. transmission rollers: aluminium

3. edge cutter 2 pcs

4. online edge crusher : for choice

1. automatic cutting

2. automatic rolling

3. automatic roll changing

4. roll diameter: 600 mm / 800 mm

5. PLC control,

control panel

PLC control / not PLC control

inverter: ABB / Delta / according to customer requirement

contactor & relays: Siemens

switch: CHNT

touch screen: Siemens

PLC: Siemens

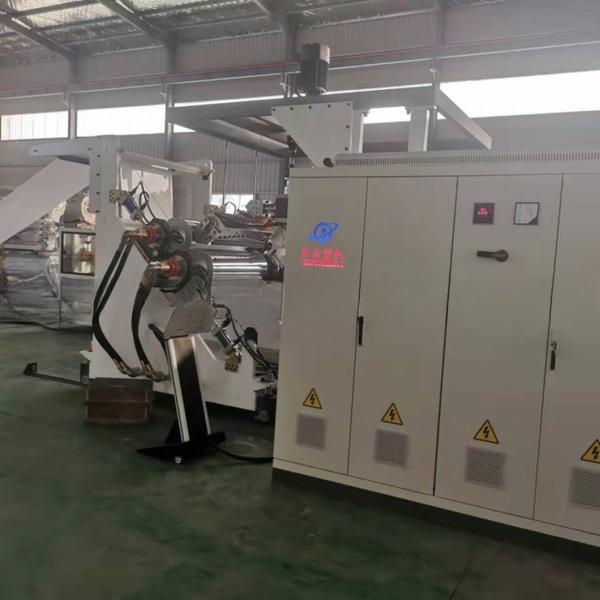

Automatic Plastic Extruder Machine for Thermoforming PP PS ABS HIPS Production Line Images
